SPECIFICATIONS

Brand Name: YUME

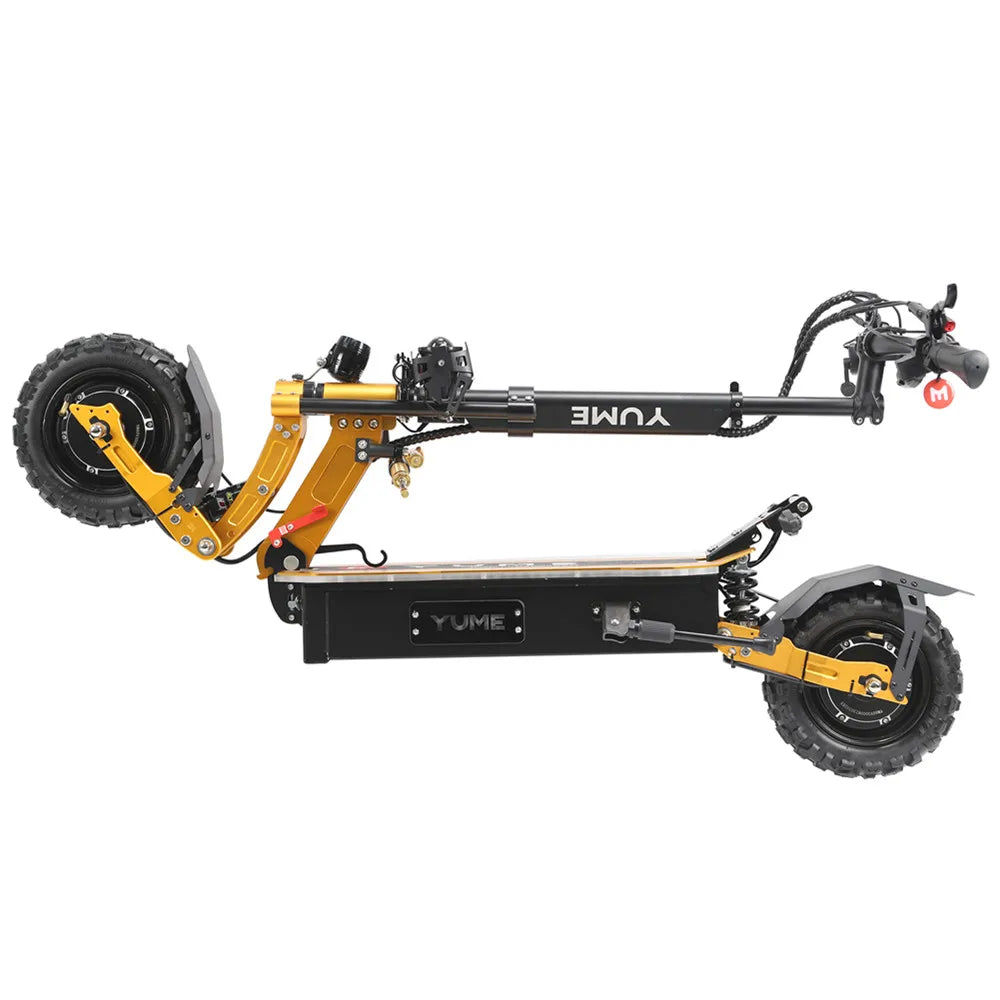

Foldable: YES

Range Per Charge: 96km

Charging Time: 8-10h

Power: 6000w

Origin: Mainland China

Voltage: 60v

Applicable People: Unisex

Tire Size: 11 inch

Category: Two-wheel Scooter

Certification: ce

Model Number: YMX11

Item Number: YMX11

Max speed: 80km/h(50mph)

Range: 96km(60Miles)

Climbing Angle: 50°

Tire: 11 inch off road tires or road tires

Brake: Oil brake

Loading: 330lbs

N.G.: 48/57KGS

Packing size: 141*33*65cm

Charding time: 6hours (double charger)

Battery: Lithium battery

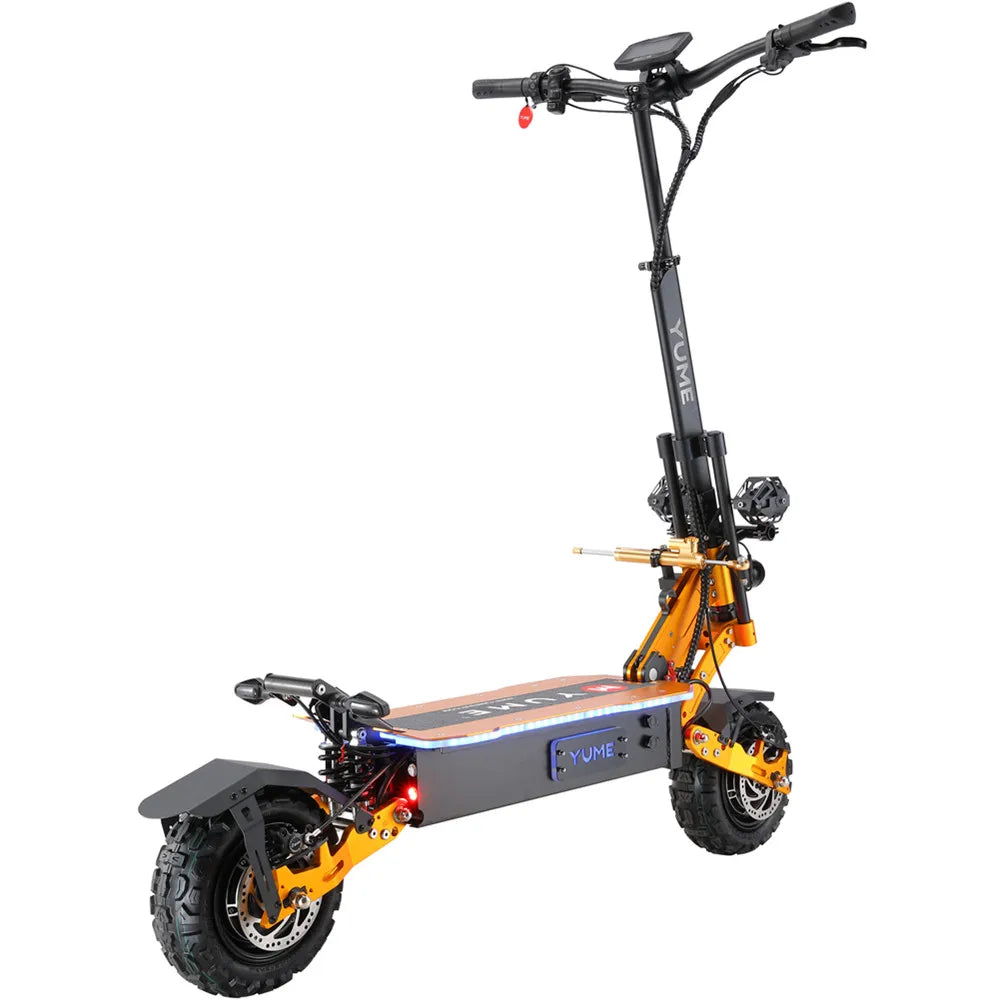

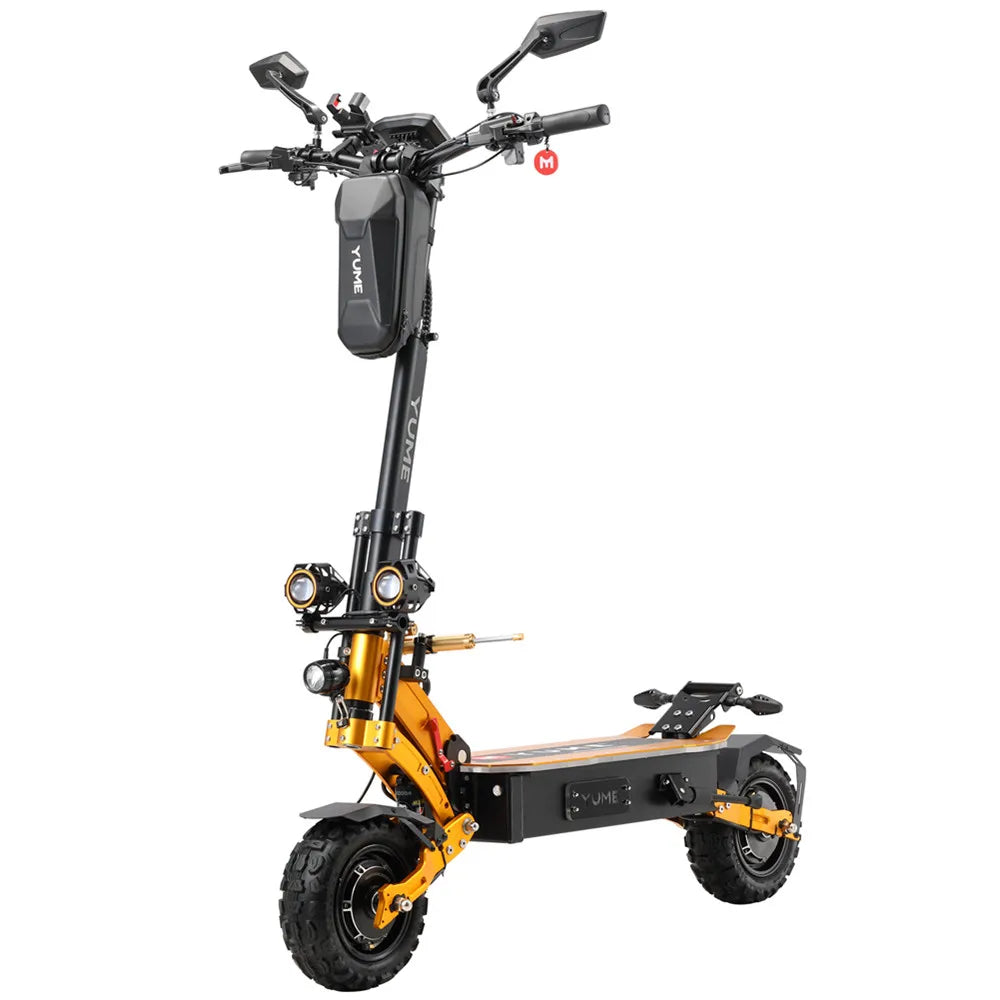

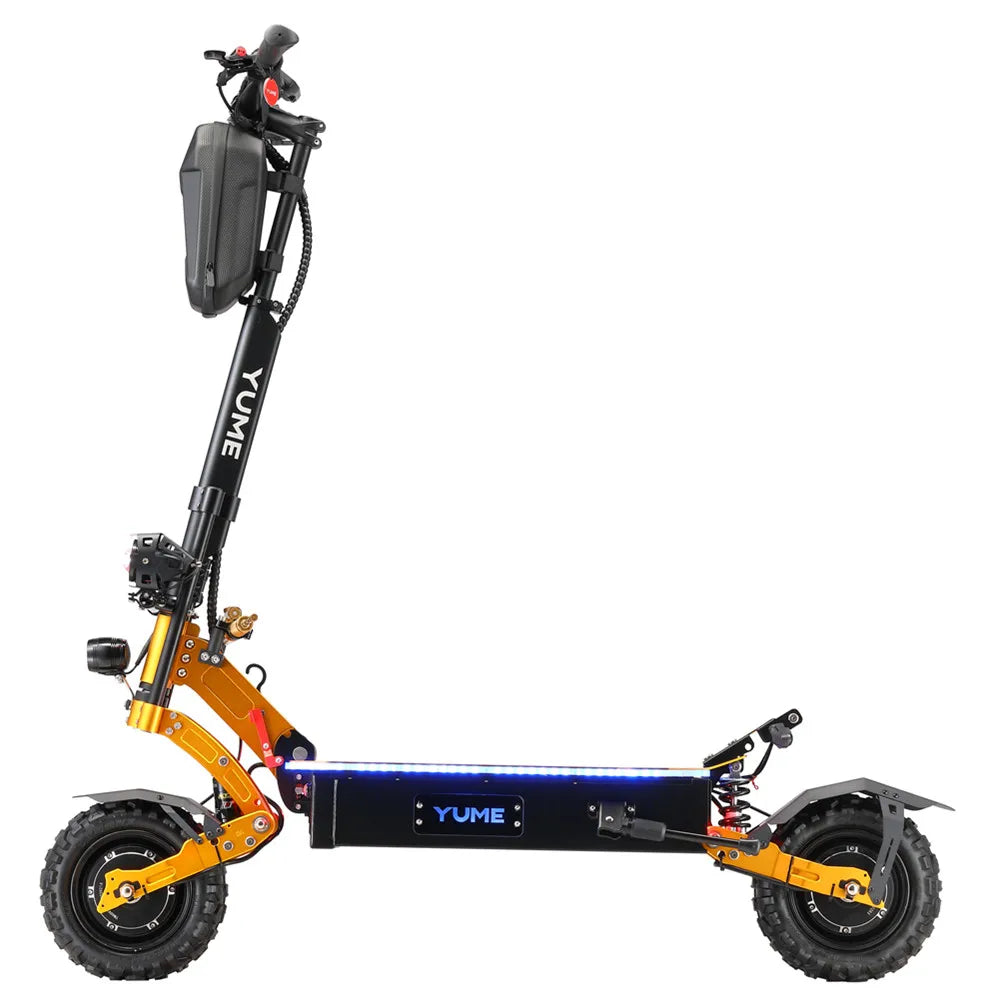

2023 Next Generation YUME X11+

New generation

High-speed Electronic Control Systems

The YUME2023 high-speed customized front and rear 3000W brushless motors provide incredible power and strong climbing ability. A carefully modulated motion control curve gives a powerful and smooth acceleration experience with a super fast dynamic response time of 0.07 seconds.

0.07 Seconds                                            45A x 2

Fast dynamic response                            Sine-wave controllers

6061 Aircraft Grade Aluminum Frame

A fully integrated, threadless, heat-treated aircraft grade aluminum frame offers greater durability and provides greater safety. The unique C-shaped three-bar patented structure combines the comfort and softness of the C-shaped suspension with the stability and firmness of the handlebar frame.The next generation YUME X11 also has enhanced balancing on the front and rear tires.The adjustable handlebar provides a comfortable and stable ride position.

IP 54                                                                                   304 electroplated screw

Waterproof grade                                                              prevent rust, corrosion, loosening

Five shock absorption points

YUME's unique three-bar C-shaped patented structure combines perfectly with the comfort and softness of the C-shaped suspension providing stability and firmness.Double rear shock absorbers and comfortable off-road wide tires are included. A steering damper comes installed to effectively filter vibration and bumps, for a safe and comfortable high speed ride over any terrain.

Steering damper                                                           Double rear shock-absorption

Extremely stable                                                             Long journey rear shock-absorption

E-ABS Front and Rear  Hydraulic Disk Brakes

Your safety is our top priority. The E-ABS front and rear hydraulic braking system uses porous brake disks manufactured using high-temperature carbonization methods. This effectively controls high temperatures caused by braking, making brake applications safer. It uses a highly sensitive E-ABS electronic braking system. Once applied, it activates within 0.1 seconds.

Effective braking system                                                                                     Honeycomb-like Ventilation Disks

Effective braking system                                                                                       Prevention of high brake temperatures

Safe and long lasting battery with BMS

The YUME X11 is equipped with a Samsung 60V 30Ah battery which gives a maximum range of 60 miles. It is equipped with over-current protection, short-circuit protection, abnormal temperature protection, over-charge protection, over-discharge protection, and automatic sleep under voltage. It supports fast and dual charging. The charging mode is optimized for safety. YUME makes no compromises on battery safety measures.

Double charging ports                                                                                           Long life 21700 cells

Comes with 2 chargers                                                                                           800 cycles after≥ 70% capacity

Comfortable Off-road fat tires

With an upgraded adaptive tire design,it the installed tires guarantees good off-road performance, and also provides a comfortable riding experience on city streets. The extra wide tires, provide increased grip, stability and adaptability for different terrains.The new tyres also offer improved burst resistance, and wear resistance.

Tire size                                               Pit crossing length                                    Pit crossing depth

11 i nch * 3.95 inch                               2.75 Inch                                                        4 Inch

Specification:

• Motors: 6000-watt motor with hall sensor/ 5800-watt motor with hall sensor

• Max Speed: 60V Up to 50MPH (depending on rider's weight, state of charge, road conditions, etc.)

• Battery: 60V 30Ah / 60V 31.5Ah

• Range: 60 Miles

• NFC: 2 NFC Fast response Near Field Communication cards

• APP: IOS/ANDROID YUME customize

• Tires: 11" Off-road Tubeless Tires

• Brakes: Front and Rear Hydraulic disc brake

• Front Suspension: New enclosed shock absorption

• Rear Suspension: 2*125mm length spring suspension

• Lights: Front light + Brake light + turn signal + Horn

  IP Rating: IP 54

  Weight: 110lbs/48KG（with seat add 2kg）

  Charger: Standard 2*2A chargers(Dual charging port in the scooter)

  Maximum load: 330lbs/150KG
